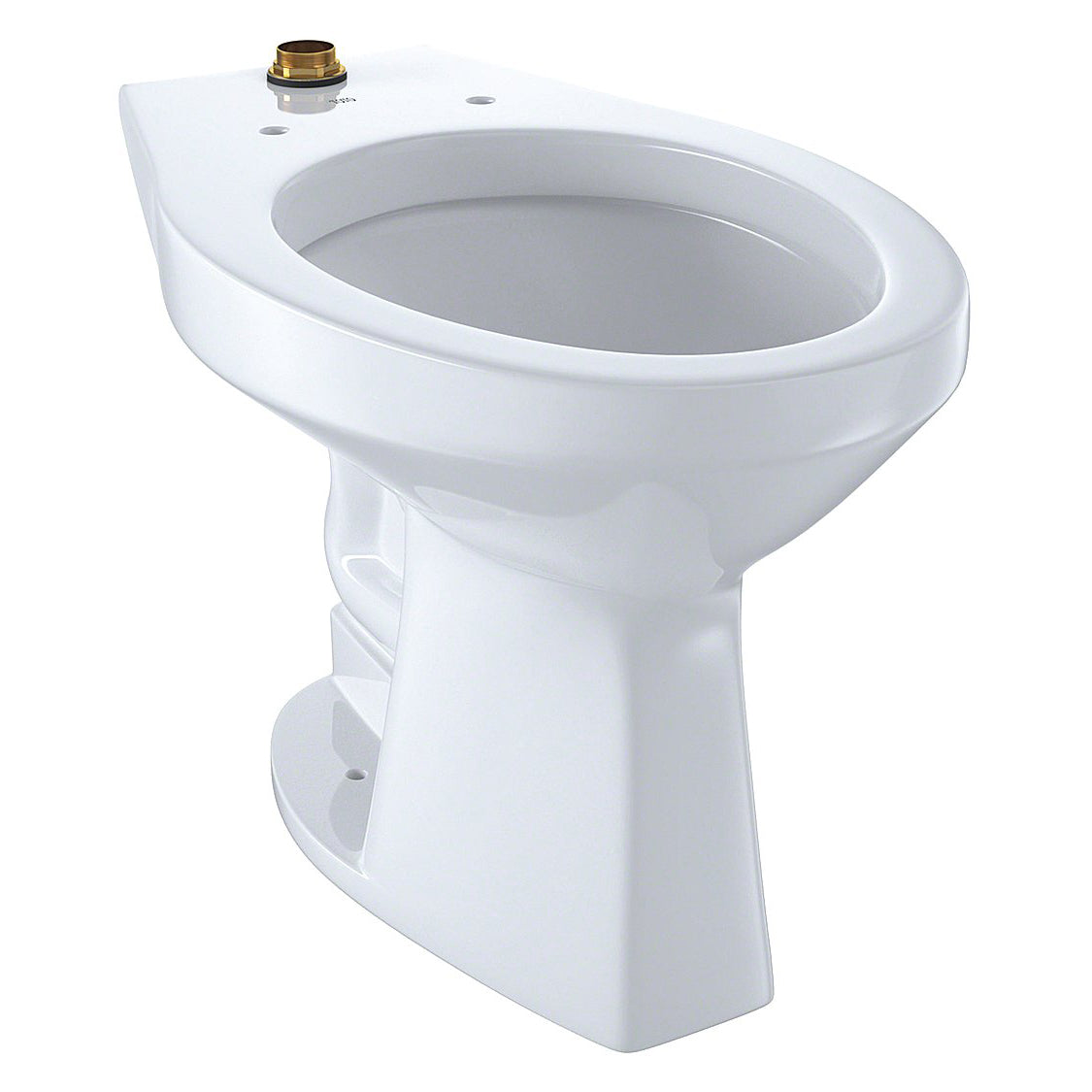

TOTO High Efficiency Water-Conserving Floor Mount Commercial Flushometer Toilet

Powerful and quiet, this commercial toilet offers innovations and performance for any public space, from a library to a factory. This model is designed to work with the TOTO High-Efficiency EcoPower Flush Valves (NOT INCLUDED), which feature low water consumption and siphon jet action. Seat NOT included.

This CalGreen compliant toilet is ideal for high traffic commercial spaces, providing an elegant water conservation solution or LEED option.

TOTO CT705EN#01 Flushometer Toilet Features

• Siphon Jet Flush Action
• Elongated Front Rim
• Floor-Mounted
• Designed to work with EcoPower Flush Valves
• Seat NOT included
• Flush Valve NOT included
• Code compliance: UPC, IPC, NSPC, NPC Canada, and others
• Certifications: IAPMO (cUPC), State of Massachusetts, City of Los Angeles, and others
• Meets and exceeds ASME A112.19.2/CSA B45.1
• SKU: CT705EN#01
• UPC Code: 739268156449

TOTO CT705EN#01 Flushometer Toilet Specs

• Water Use: 1.28GPF/4.8LPF
• Flush System: Siphon jet flushing action
• Min. Water Pressure: 35 psi (flowing)
• Min. Flow Rate: 23 GPM
• Water Surface: 10-1/4" x 9-5/8"
• Trap Diameter: 1-7/8"
• Trap Seal: 2-3/8"
• Rough-in: 10" or 12"
• Warranty: One Year Limited
• Material: Vitreous china

TOTO CT705EN#01 Flushometer Toilet Documentation

CAD Drawing - CT705EN
Revit Model - CT705EN
Sketchup Model - CT705EN(G)
Spec Sheet - CT705EN
Parts Manual - CT705EN
