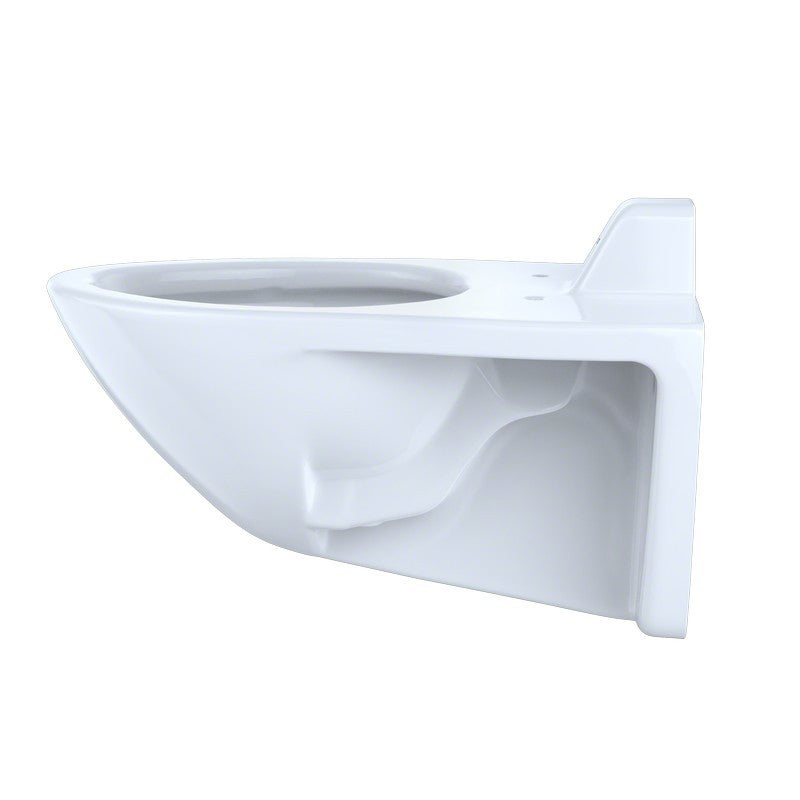

TOTO High Efficiency Wall Mount Commercial Flushometer Toilet with Back Spud Inlet

Powerful and quiet, this commercial toilet offers innovations and performance for any public space, from an airport to a shopping mall. This model is designed to work with the TOTO High-Efficiency EcoPower Flush Valves (NOT INCLUDED), which feature low water consumption and siphon jet action. 1-1/2' back spud inlet

The CalGreen and ADA compliant toilet is ideal for high traffic commercial spaces, providing an elegant water conservation solution or LEED option.

TOTO CT708EV#01 Flushometer Toilet Features

• Siphon Jet Flush Action
• Elongated Front Rim
• Wall-Mounted
• Designed to work with EcoPower Flush Valves
• 1-1/2' back spud inlet
• Seat NOT included
• Flush Valve NOT included
• Code compliance: UPC, IPC, NSPC, NPC Canada, and others
• Certifications: IAPMO (cUPC), State of Massachusetts, City of Los Angeles, and others
• Meets and exceeds ASME A112.19.2/CSA B45.1

TOTO CT708EV#01 Flushometer Toilet Specs

• Water Use: 1.28GPF/4.8LPF
• Flush System: Siphon jet flushing action
• Min. Water Pressure: 35 psi (flowing)
• Min. Flow Rate: 23 GPM
• Water Surface: 12" x 9-1/4"
• Trap Diameter: 2-1/8"
• Trap Seal: 2-5/8"
• Warranty: One Year Limited
• Material: Vitreous china
• SKU: CT708EV#01
• UPC Code: 739268128149

TOTO CT708EV#01 Flushometer Toilet Documentation

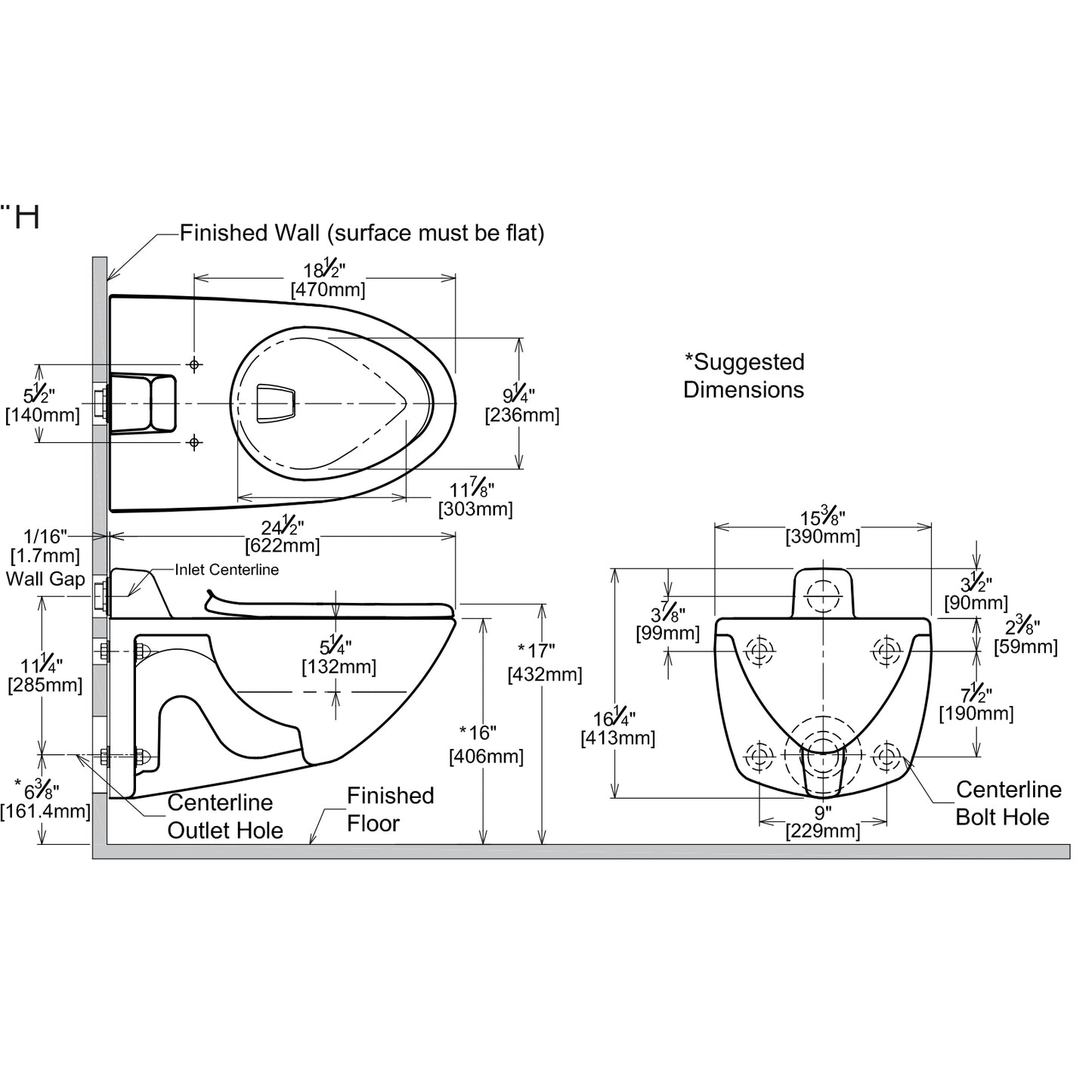

• CAD Drawing - CT708EV, CE708EVG

• Revit Model - CT708EV, CT708EVG

• Sketchup Model - CT708EV(G)

• Spec Sheet - CT708, CT708EG, CT708EV

• Parts Manual - CT708EV, CT708EVG
