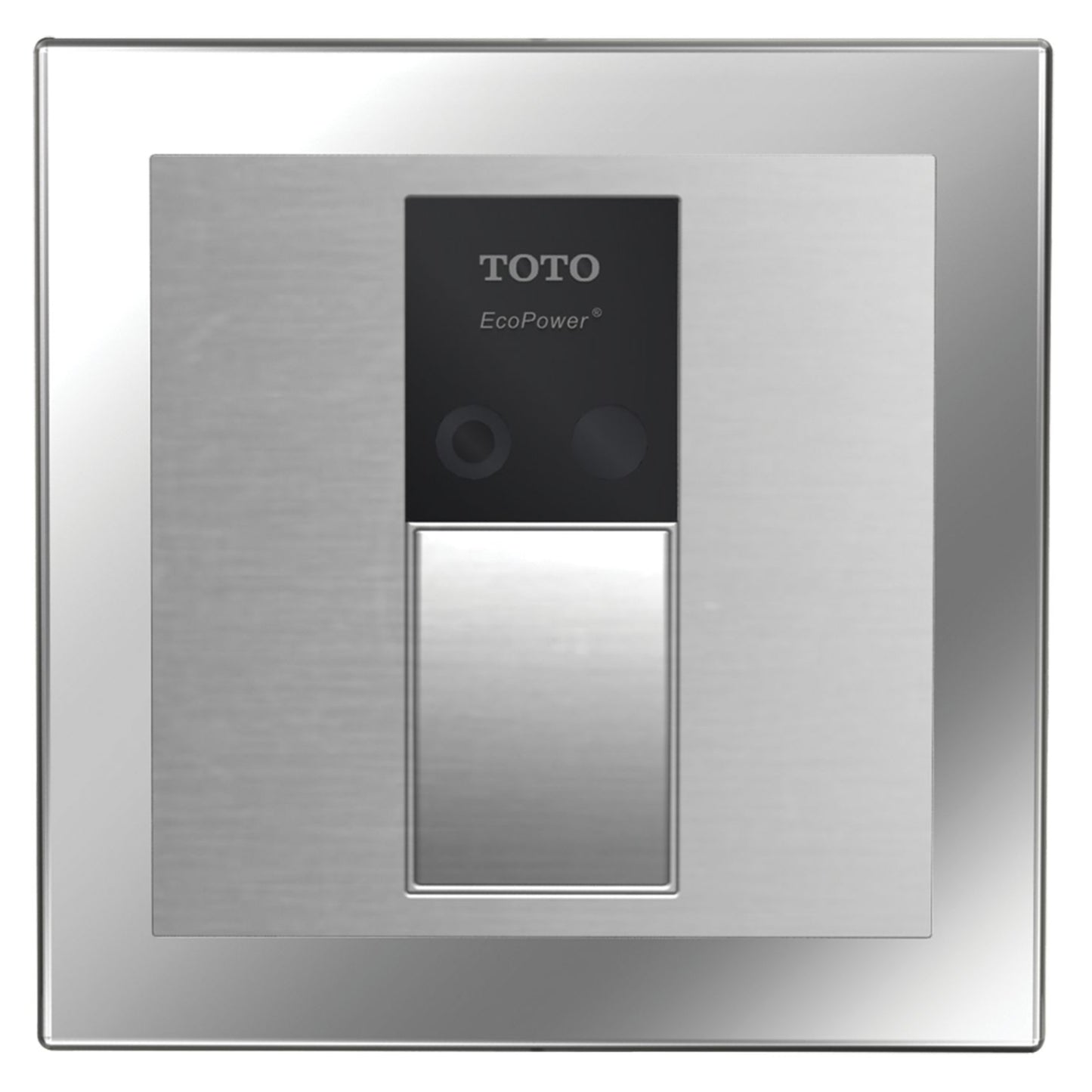

TOTO High-Efficiency Hydropower Toilet EcoPower Retrofit Flushometer Valve Body, Satin Finish

Toto TET3LN#SS EcoPower 1.28 Gallon Per Flush Concealed Toilet Flushometer Valve Retrofit Body. The EcoPower Flush Valve is a Self-Generating sytem that does not require batteries or transformers. The Sensor activated flush valve is piston operated for increased lifespan in tough high traffic conditions.

The Toto TET3LN#SS does not require scheduled mainenace calls and reduces continued cost to operate. Stainless Steel Finish. No batteries or power supply required.

• Hydropower self-generating system
• Electronic flushometer valve complete with 1" angle stop and 1-1/2" vacuum breaker set
• 1.28 gpf or less
• Back spud floor, top spud and back spud wall models - concealed 4" x 4" Cover plate
• 24 hour automatic flush for trap seal protection
• Material: Bronze casting with stainless steel satin finish
• Water Supply: 1" NPT
• Detection time: Factory setting at six (6) seconds minimum
• Detection range: Self-adjusting to environment
• Discharge quantity: Preset to 1.28 gpf / 4.8 lpf
• Operating temperature: 32°-104°F (0°-40°C)
• Supply water pressure: 35 psi (flowing) - 125 psi* (minimum flow rate of 23 gpm)
• Trap seal protection
• Automatically flushes once after twenty four (24) hours of non-use
• ADA Compliant
• SKU: TET3LN#SS
• UPC Code: 739268145566

Toto TET3LN#SS Flushometer Valve Documentation

• CAD Drawing

• Revit Model

• Spec Sheet - TET3LN

• Parts Manual - TET3LN
