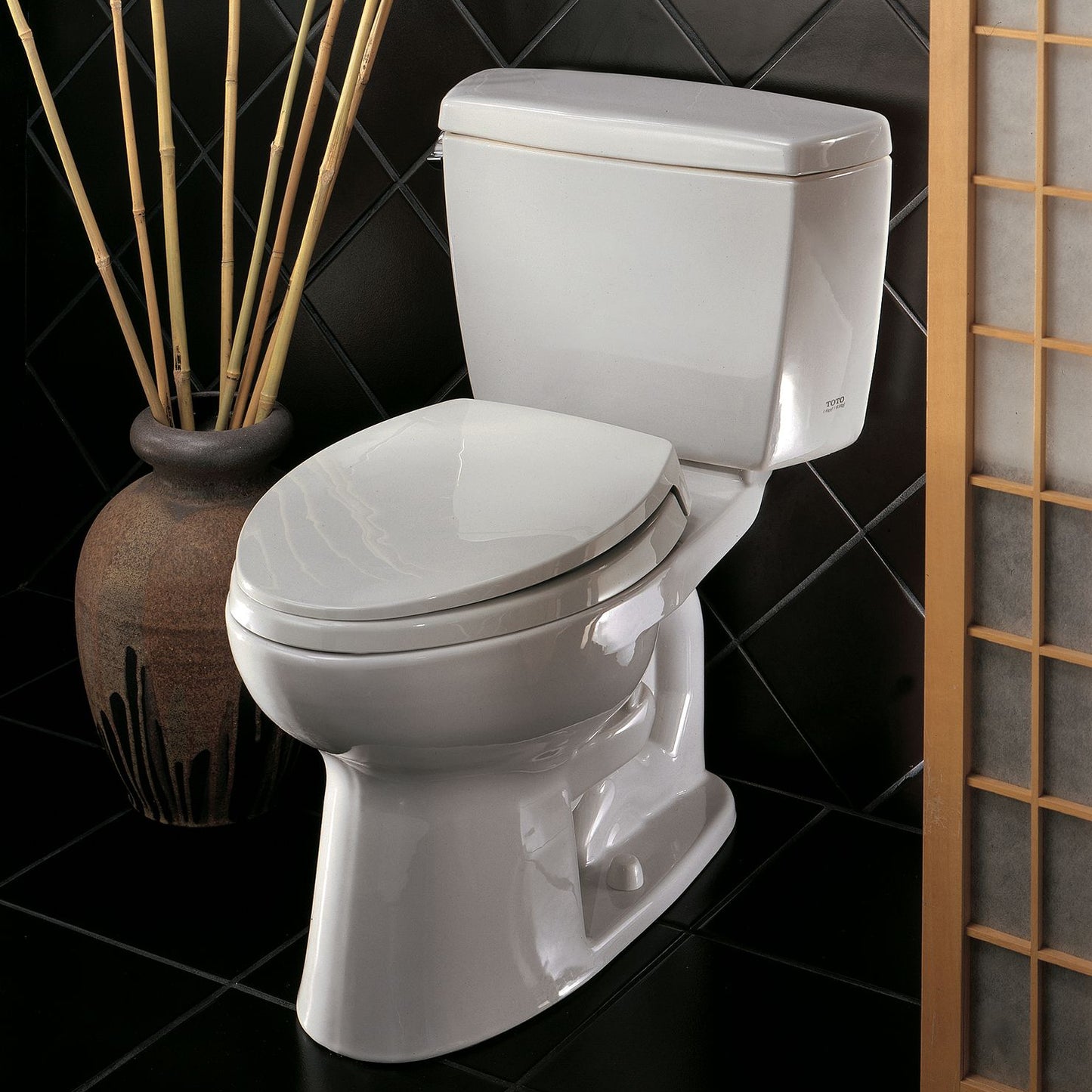

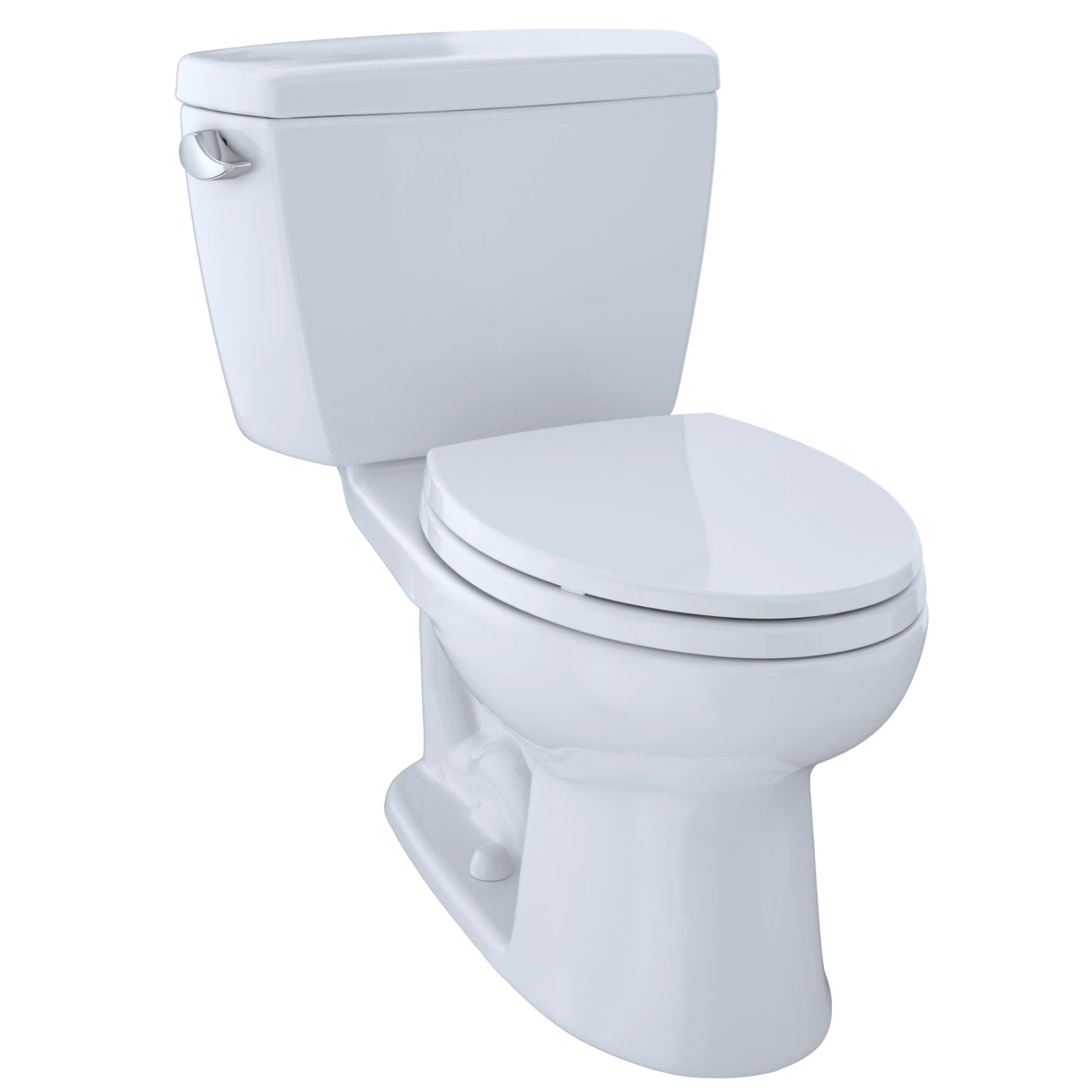

TOTO CST744EF.10#01 Eco Drake Close Coupled Two Piece Toilet with Commercial Seat

Commercial grade two-piece model combining transitional design with Toto's quietly powerful E-Max flushing system. This close couple elongated model may be installed with a soft-close or commercial seat (included) or WASHLET.

Switching out your old 1.6 GPF toilet to a 1.28 GPF model like the Eco Drake can reduce your home water usage by 20-35%. That's nearly 13,000 gallons per year.

TOTO CST744EF.10#01 Two Piece Toilet Features and Specifications

• E-Max Flushing System
• Computer Designed, Fully Glazed Trapway
• Elongated Bowl
• Chrome Trip Lever Included
• Other tanks available to accommodate bolt down lid and insulated tank requirements
• Universal Height
• ADA Compliant
• 10" Rough-In
• Water use: 1.28 GPF/4.8LPF
• Trap diameter: 2-1/8"
• Toilet Bowl SKU: C744EF.10 (elongated, with 10" rough-in)
• Toilet Tank SKU: ST743E (with left side trip lever)
• Toilet seat SKU: SC534#01
• UPC Code: 739268167049

TOTO CST744EF.10#01 Two Piece Toilet Documentation

Installation Manual - 2-Piece Toilets
Spare Parts - CST744EF.10, CST744EFR.10
CAD Drawing - CST744EF.10, CST744SF.10
CAD Drawing - CST744EFR.10, CST744SFR.10
Revit Model - CST744EF.10
Spec Sheet - CST744EF.10, CST744EFR.10

TOTO CST744EF.10#01 Two Piece Toilet Codes and Compliance

• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense, State of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada, and others
• Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever located on the approach side)
• Complies with CA Prop 65 warning requirements

TOTO recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes. To maintain adequate wall gap between the back of the tank and wall, mount the floor flange at a nominal 10” rough-in distance.
