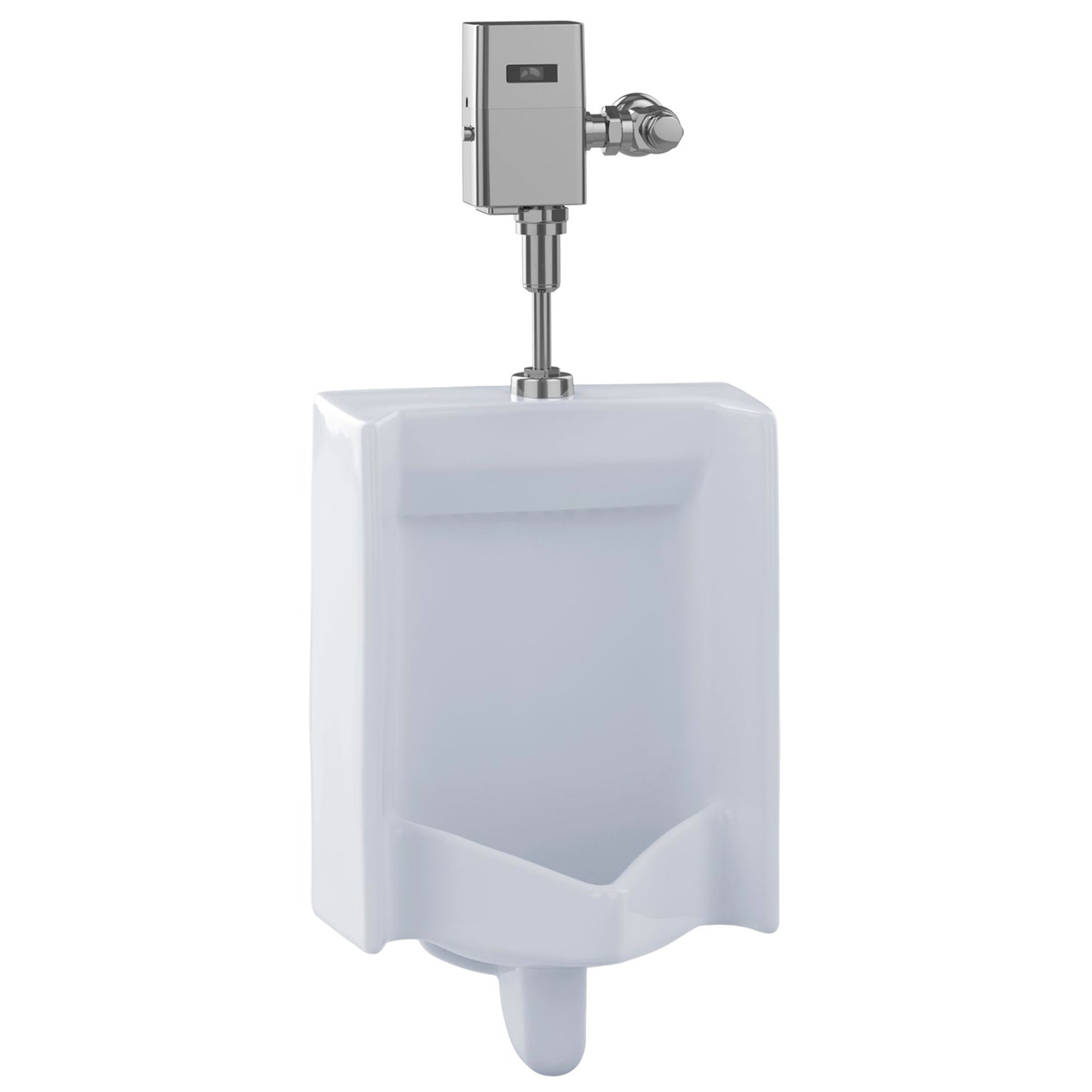

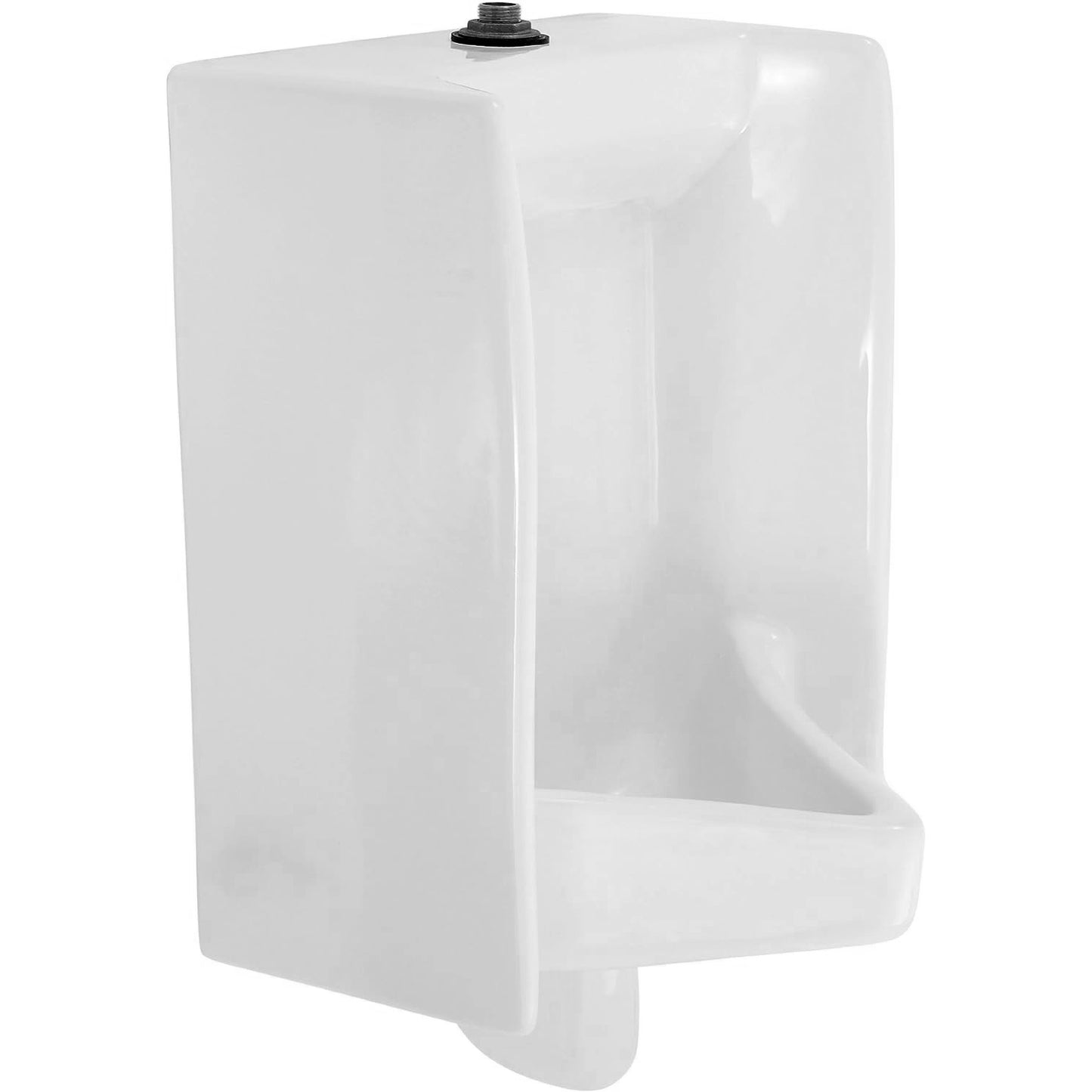

TOTO Commercial Washout Ultra High Efficiency ADA Urinal with Top Spud

Premium vitreous construction of urinal body provides a classic look and feel. Urinal only configuration with top spud allows for you to select your desired flushometer. Urinal features a concealed integral trap. Wall mounted installation type saves space without sacrificing functionality. WaterSense certified – toilet uses 20% less water than the current standard while maintaining superior performance.

TOTO UT445U#01 Commercial Urinal Features and Specs

• Water use: 0.125GPF/0.473LPF
• Flush System: Washout flush action
• Material: Vitreous china
• Min. Water Pressure: 15psi (flowing)
• Height (urinal only): 26"
• Width: 17-3/4"
• Rim: 14-1/4"
• ADA Compliant
• WaterSense Certified
• CalGreen Certified
• 3/4" top spud inlet and 2" I.P.S. outlet
• SKU: UT445U#01
• UPC Code: 739268254923
• Flush Valve not included

TOTO UT445U#01 Commercial Urinal Documentation

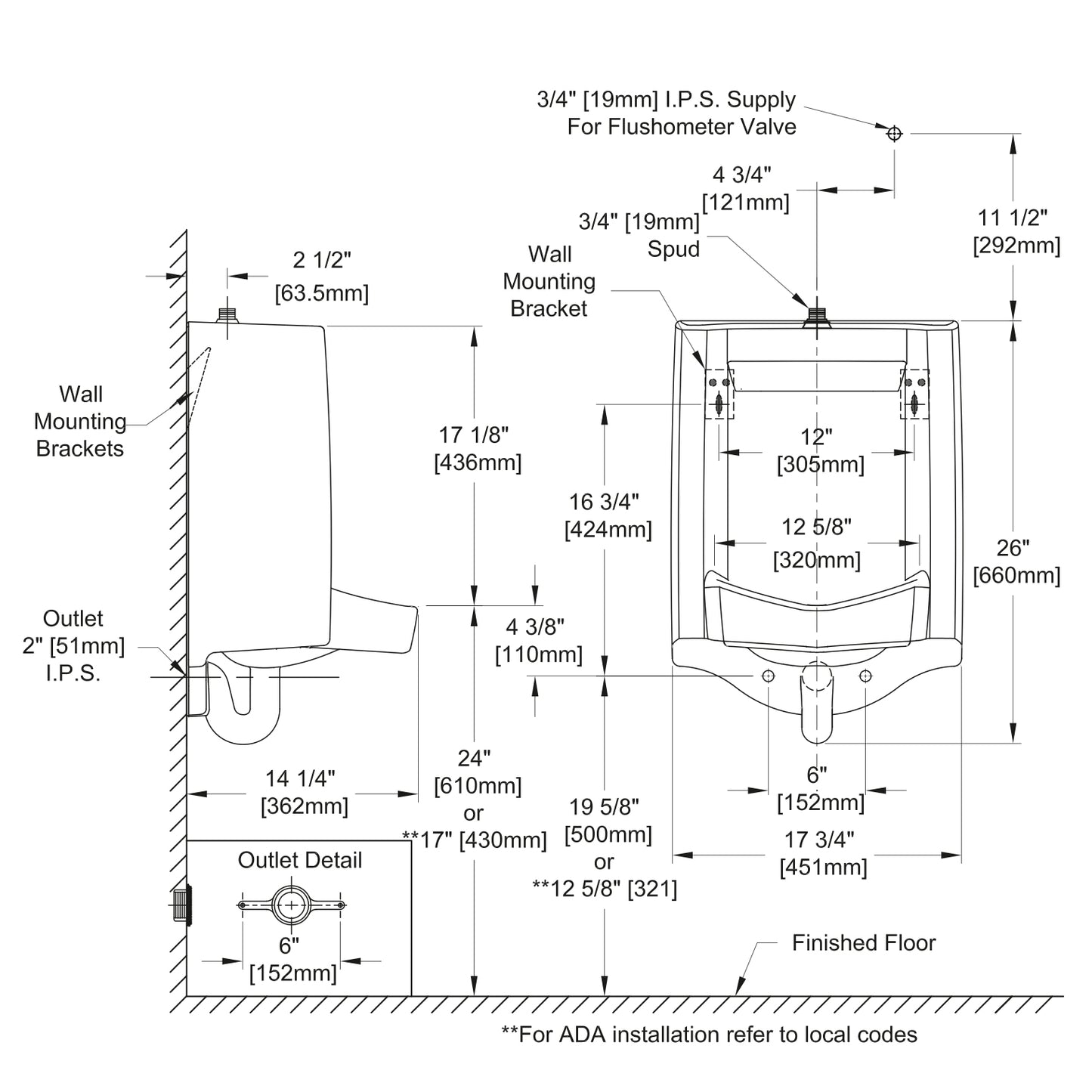

• CAD Drawing - UT445U

• Revit Model - UT445U

• Spec Sheet - UT445U, UT445UV

• Spec Sheet - UT445UX

• Installation Manual - Commercial Urinals

• Parts Manual - UT445U, UT445UV
