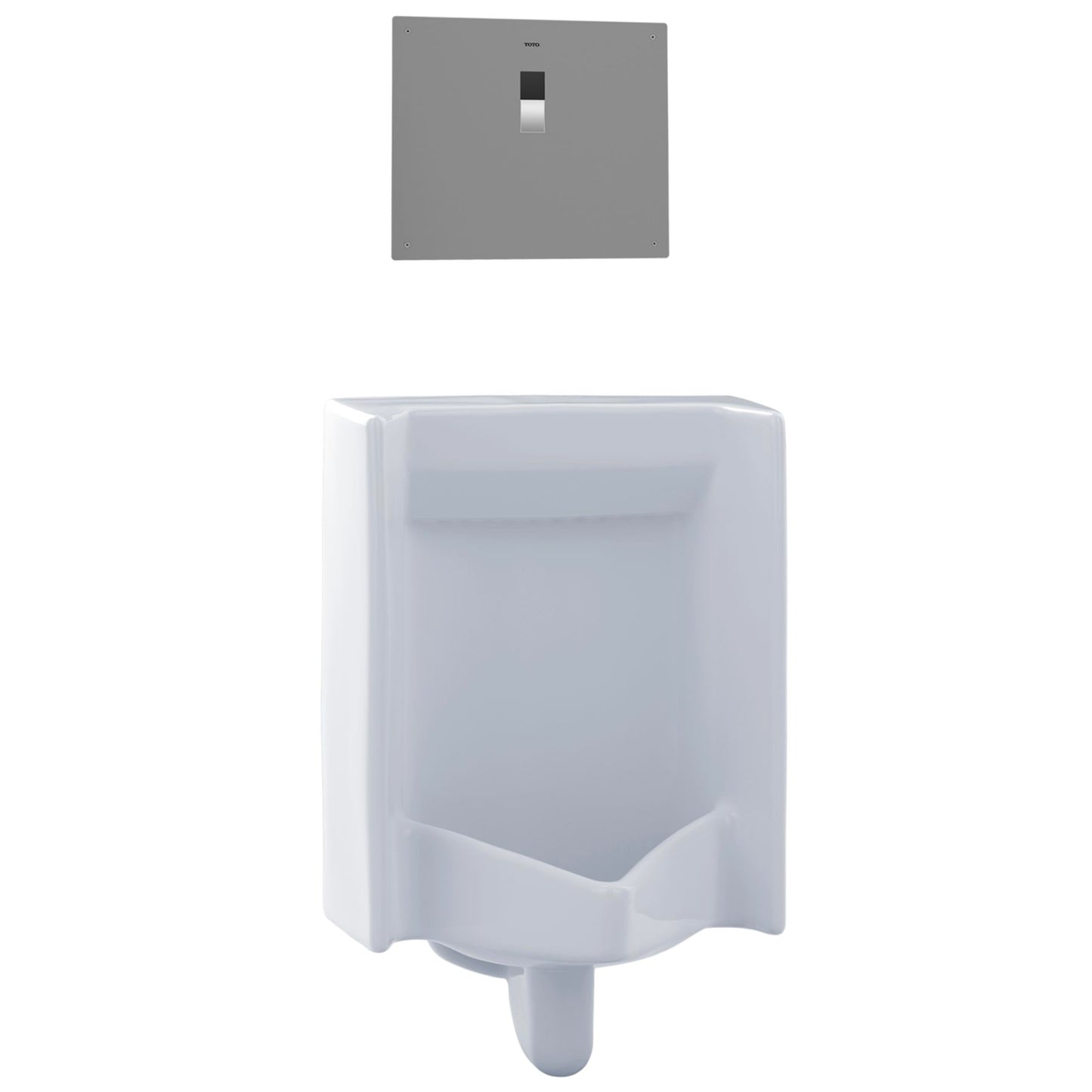

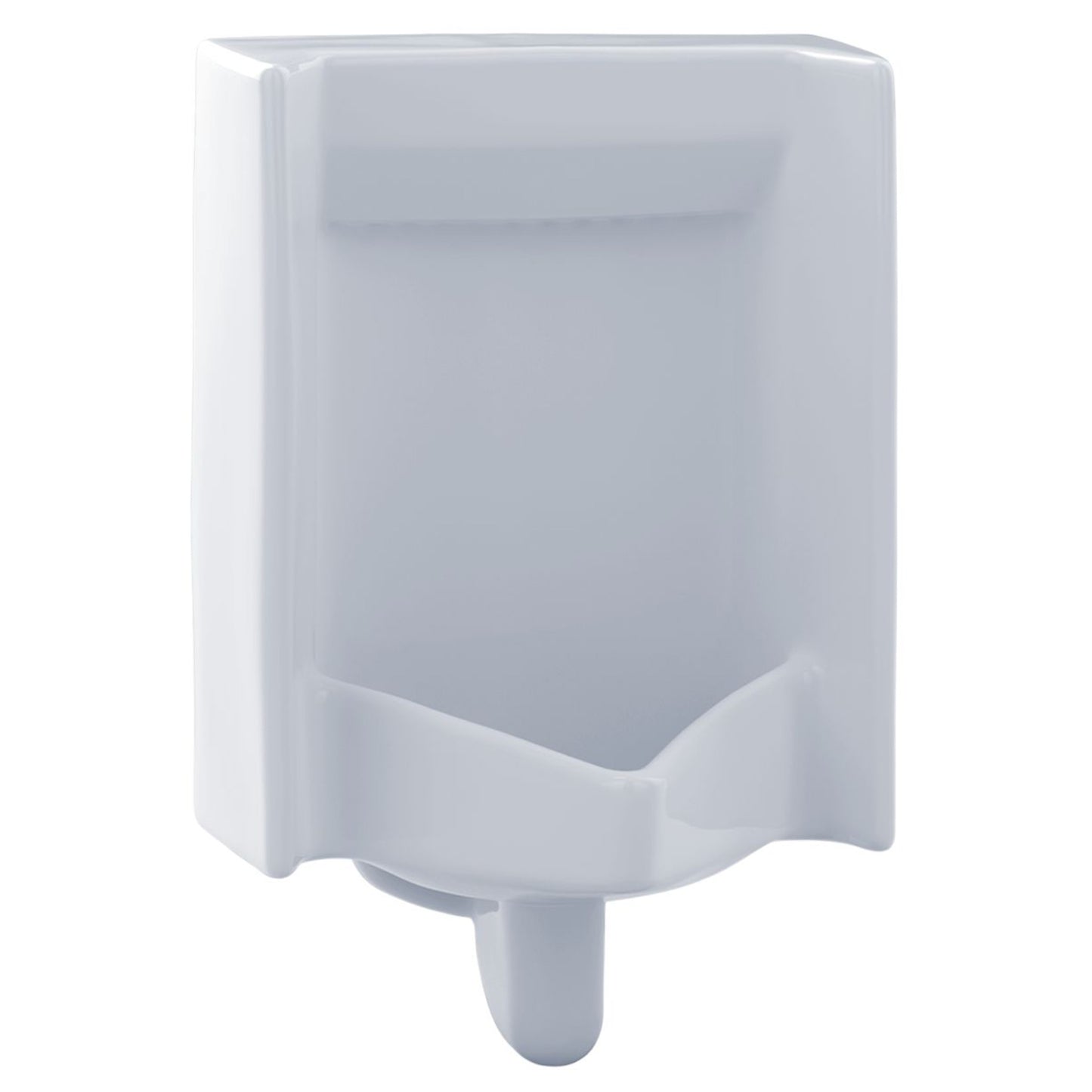

TOTO Commercial Back Spud Inlet Wall Mount High Efficiency Urinal, Less Flush Valve

Compact washout urinal with concealed integral trap, 3/4" back spud inlet and 2" I.P.S. outlet.

TOTO UT447EV#01 Commercial Urinal Specs and Features

• Vitreous china construction
• Wall mount installation
• Compact urinal with concealed integral trap
• 3/4" back spud inlet and 2" I.P.S. outlet
• Washout flush action with 3/4" top or back spud inlet
• Powerful washdown flushing action
• Integral trap
• Material: Vitreous china
• High efficiency, 0.5 GPF or less
• Flushometer valve is not included
• Min. Water Pressure: 15psi (flowing)
• Height: Urinal Only - 27-3/16"
• Width: 18"
• Rim: 14"
• SKU: UT447EV#01
• UPC Code: 739268130050

TOTO UT447EV#01 Commercial Urinal Code Compliance

• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of Massachusetts
• Code compliance: UPC, IPC, NSPC, NPC Canada, and others
• ADA compliant
• To complete a WaterSense listed combination, the urinal must be paired with a flush valve which is EPA WaterSense listed

TOTO UT447EV#01 Commercial Urinal Documentation

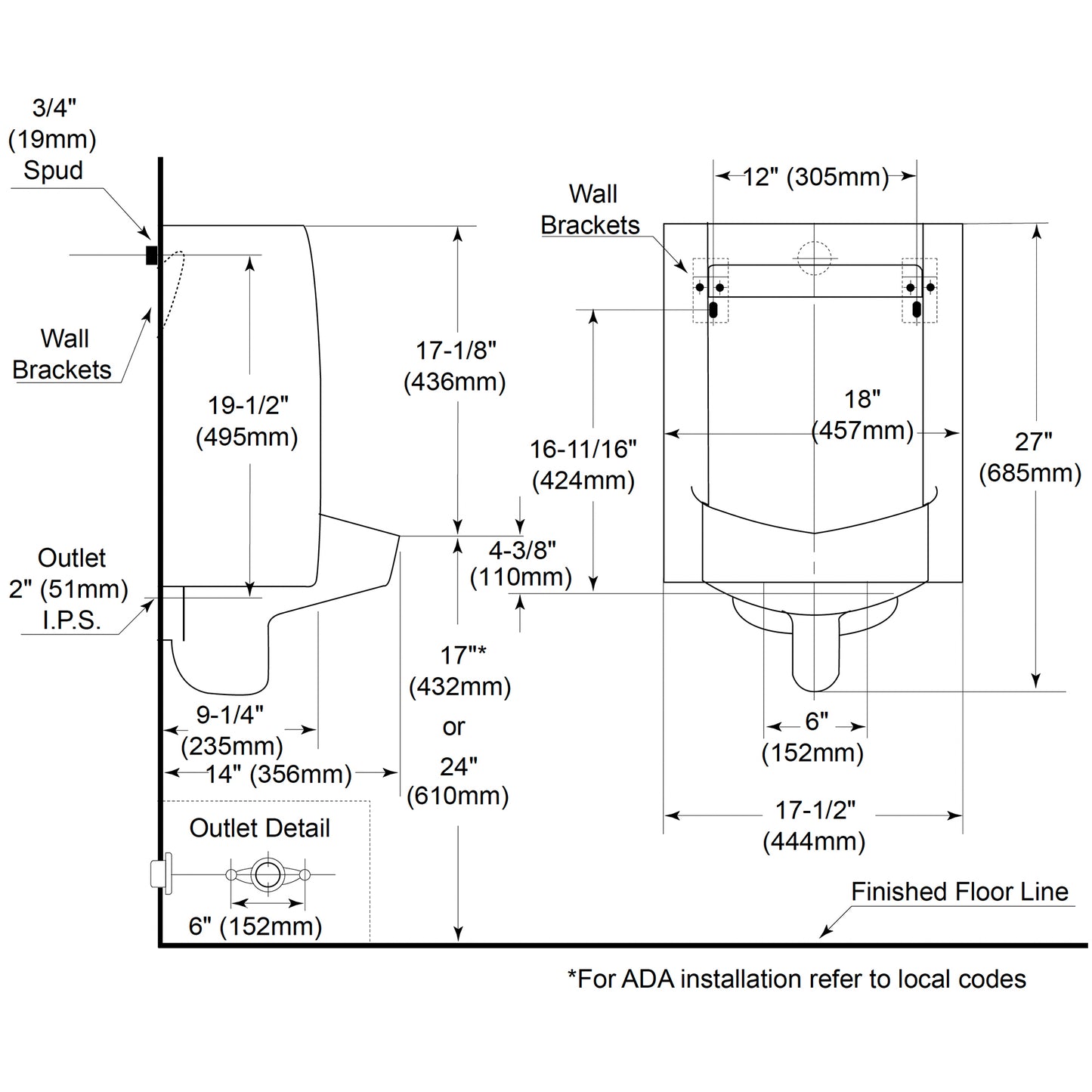

• CAD Drawing - UT447E, UT447EV

• Revit Model - UT447EV

• Spec Sheet - UT447E, UT447EV

• Installation Manual - Commercial Urinals

• Parts Manual - UT447E, UT447EV
